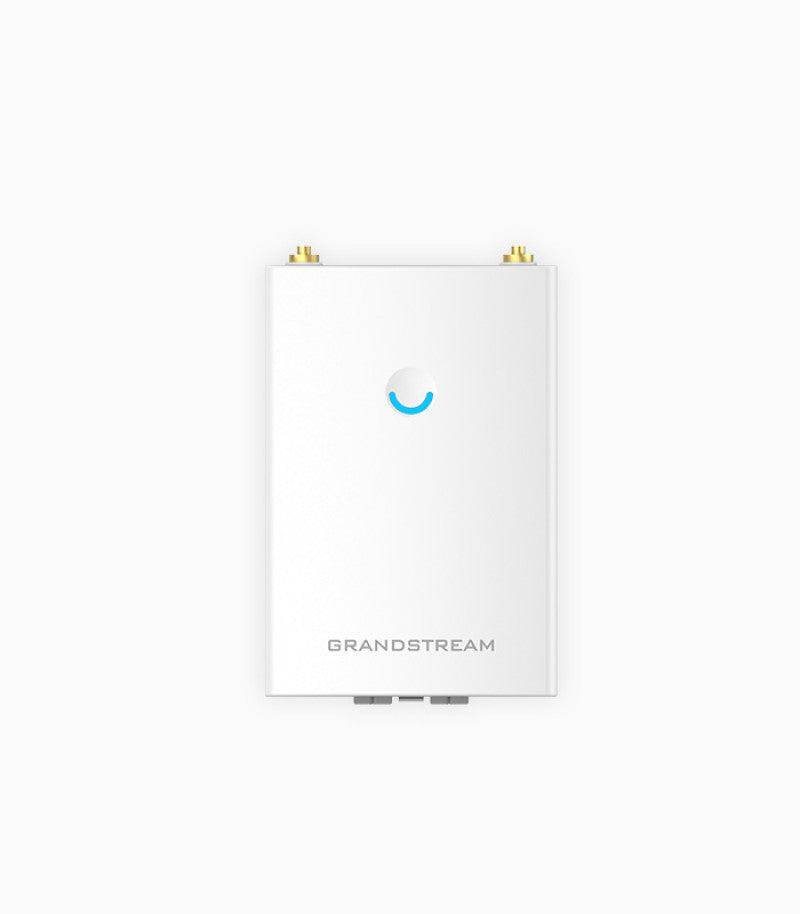

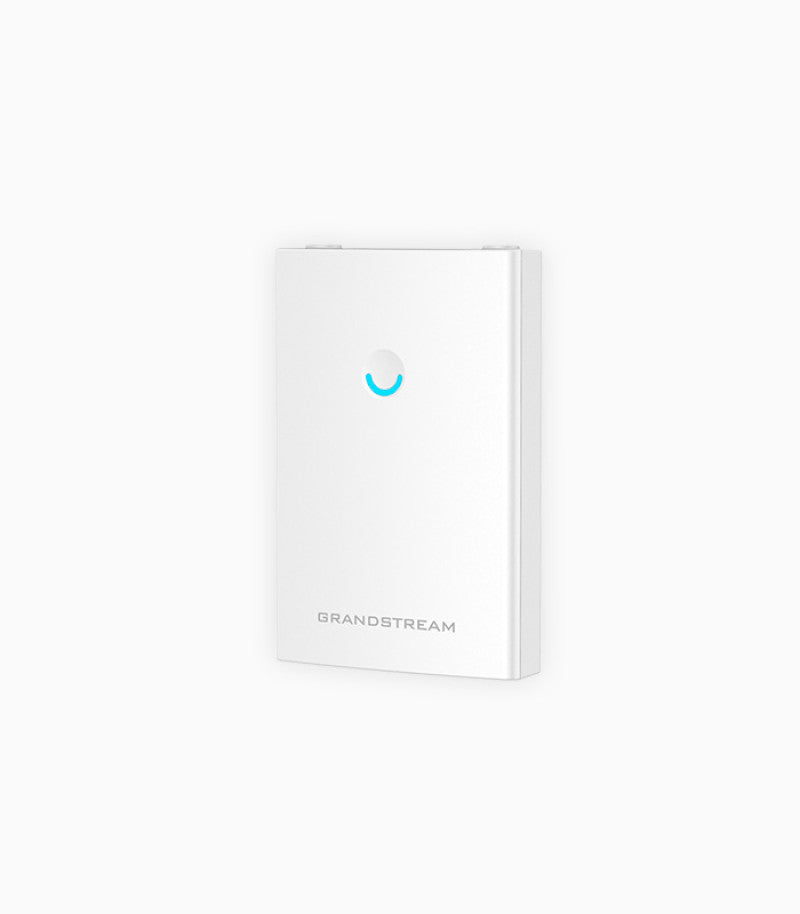

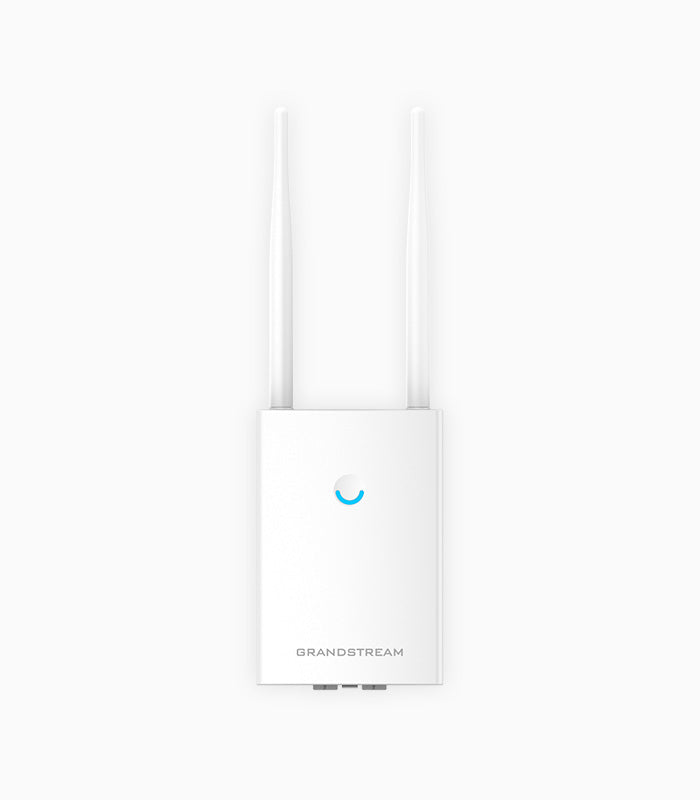

GrandStream GWN7605LR Outdoor Long-Range Wi-Fi Access Point

GrandStream GWN7605LR Outdoor Long-Range Wi-Fi Access Point

Regular price 44.900 KWD
Regular price Sale price 44.900 KWD
Sale Sold out

Product Features:

  • 1.27 Gbps aggregate wireless throughput and 2×Gigabit wireline ports
  • Dual-band 2×2:2 MUMIMO with beam-forming technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Supports 100+ concurrent Wi-Fi client devices
  • Up to 250-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown
  • Flexibility of 2 detachable/ changeable antennas for different application scenarios
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Product Specifications:

  • Wi-Fi Standards: IEEE 802.11a/b/g/n/ac (Wave-2)
  • Antennas:2 dual band external antennas, 2.4GHz, gain 3.5dBi, 5 GHz, gain 3.5dBi
  • Frequency Bands: 2.4GHz Radio: 2412 – 2484 MHz, 5 GHz Radio: 5180-5825 MHz
  • Channel Bandwidth: 2.4G: 20 and 40 MHz, 5G: 20, 40 and 80 MHz
  • System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
  • MIMO: (2) 2:2 2.4GHz (MIMO), (2) 2:2 5GHz (MU-MIMO)
  • Coverage Range: Up to 250 meters
  • Maximum TX Power: 2.4G: 24 dBm, 5G: 22 dBm
  • Receiver Sensitivity 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
  • Receiver Sensitivity 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
  • SSIDs: 8 SSID per radio
  • Concurrent Clients: 100+
  • Network Interfaces: (2) autosensing 10/100/1000 Base-T Ethernet Ports
  • Auxiliary Ports: (1) Reset Pinhole

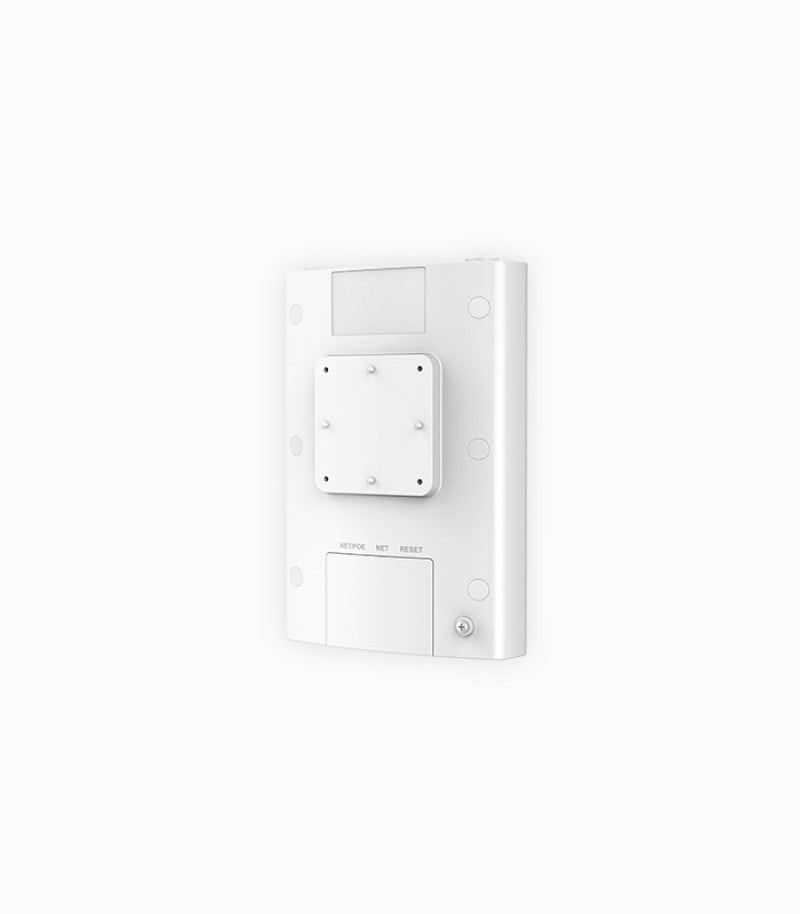

  • Mounting: Outdoor metal bar mount or wall mount, kits included
  • LEDs: (1) tri-color LEDs for device tracking and status indication
  • Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
  • QoS: 802.11e/WMM, VLAN, TOS
  • Network Management: Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager (BETA) offers premise-based software controller for up to 3,000 GWN APs
  • Power and Green Energy Efficiency: PoE 802.3af/ 802.3at, Maximum Power Consumption: 10.16W
  • Operation Temperature: -30°C to 70°C
  • Storage Temperature: -30°C to 80°C
  • Humidity: 5% to 95% Non-condensing
  • Weatherproof Grade: IP66-level weatherproof capability when installed vertically
  • Compliance: FCC, CE, RCM, IC

Product Includes:


(1) GWN7605LR Access Point

(2) Antennas

(1) Base Bracket

(1) Quick Installation Guide

(4) Screws (PM 3.0 x 7)

(2) Metal Straps

(4) Expansion Screws
