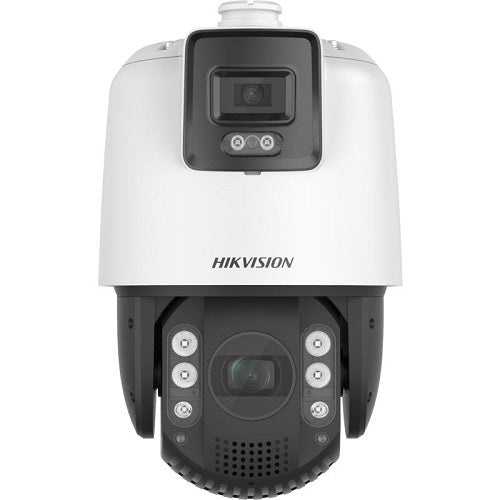

Hikvision IP PTZ TandemVu 7-inch 4 MP 32X Colorful & IR Network Speed Dome DS-2SE7C432MW-AEB(14F1)(P3)

• Captures a large area and great details at the same time​

• High quality imaging with 4 MP resolution

• Excellent low-light performance with powered-by-DarkFighter technology

• Secures an expansive area with 32× optical zoom and 16× digital zoom

• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus

• Expansive night view with up to 200 m IR distance
  Supports 24 VAC & Hi-PoE

  Camera​

• Image Sensor[Bullet channel]: 1/1.8" Progressive Scan CMOS; [PTZ channel]: 1/1.8" progressive scan CMOS

• Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

• Min. Illumination

  [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

  [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR

• Shutter Speed1 s to 1/30,000 s

  Lens
•

• Focal Length[Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
• FOV

  [Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°;

  [PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele)

• Focussemi-auto||manual||auto
• Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.5
• Zoom Speed[PTZ channel]: approx. 5.6 s

  Illuminator
• Supplement Light Type[Bullet channel] white light, [PTZ channel] IR
• Supplement Light Range[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m

  PTZ

• Movement Range (Pan)360°

• Movement Range (Tilt)-15° to 90° (auto flip)

• Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s

• Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

• Proportional Panyes

• Presets300

• Preset Freezingyes

• Patrol Scan8 patrols, up to 32 presets for each patrol

• Pattern Scan4 pattern scans

• Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan

  Video

• Main Stream

  [Bullet channel]:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  [PTZ channel]:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  [Bullet channel]:

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

  [PTZ channel]:

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[Bullet channel]:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

[PTZ channel]:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• ​Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM
  Audio Bit Rate32 to 192 Kbps (MP2L2)
  Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
  Environment Noise Filteringyes

  Network


• ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
• Simultaneous Live View20
• APIOpen-ended
  API, Open Network Video Interface (Profile S, Profile G), ISAPI,
  Hikvision SDK, Third-party management platform, ISUP
• User/Host32
• SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
• Network StorageNAS (NFS，SMB/ CIFS), ANR
• ClientiVMS-4200||Hik-Connect
• Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
