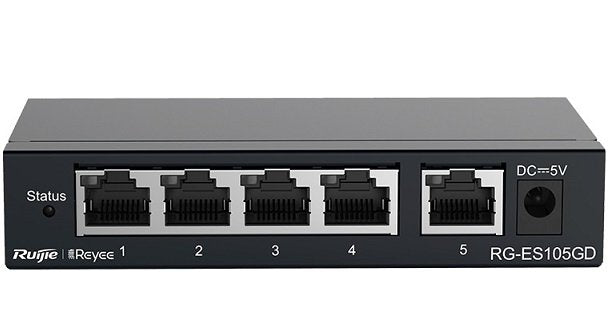

Ruijie RG-ES105GD, 5-port Unmanaged Non-PoE Switch

Ruijie Real-easy Series RG-ES105D/ RG-ES108D/ RG-ES105GD/ RG-ES108GD are cost-effective unmanaged access switches with metal casing designed for SMEs. The RG-ES100 Series supports plug-and-play without requiring any configuration, which can meet the requirements of various scenarios such as wired, wireless and surveillance networks.

• Plug and Play : RG-ES100 Series supports self-adaptive ports and plug-and-play feature with zero configuration.
• Metal Casing : The entire casing is made of metal which provides better heat dissipation.
• Easy to Install : The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.
• Enterprise-grade Quality : The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.

Model ES105GD
Ports 5 10/100/1000Mbps RJ45 ports
Maximum port forwarding rate 1000Mbps
Auto–MDI/MDIX Support
MAC address 2K
Backplane bandwidth 10Gbps
Maximum packet forwarding rate 7.44Mpps
LED indicator Link/Act status LED indicator for each port,


Power indicator

Dimensions 119mm*62mm*24mm
Power input / output External 5VDC 1.0A
Maximum power consumption ≤5W

Temperature
Operating temperature: 0 ℃ ~ 40 ℃

Storage temperature: -40 ℃ ~ 70 ℃

Humidity : Operating humidity: 10% ~ 90% non-condensing


Storage humidity: 5% ~ 90% non-condensing
