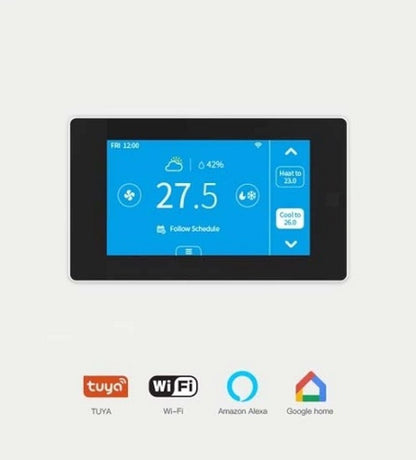

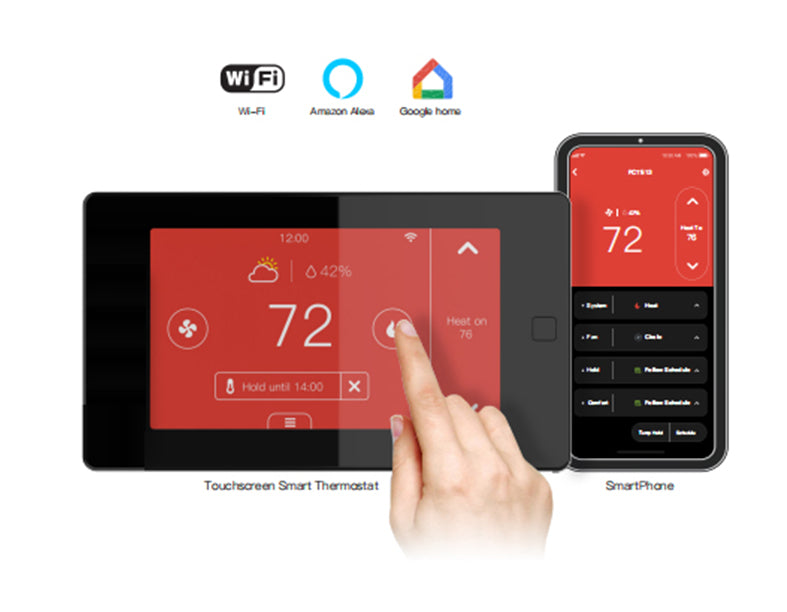

Smart Thermostat Control without sensor

HVAC Control Functions

System Mode

•  Heat, Cool, Auto, Off

• Emergency Heat (Heat Pump only)

Fan Mode:

• On, Auto, Circle(adjustable)

Advanced :

• Setting temperature locally or remotely

• Auto-changeover between heat and cool mode (System Auto)

• Compressor protection time is available for select

• Failure protection by cutting off all circuit relays

• Smart warmup (Follow Schedule mode only)

• Low temperature protection

Wireless Connectivity

• Wi-Fi : 802.11 B/G/N20/N40 @ 2.4GHz

• Radio : 915MHZ

Specifications

• LCD Screen : 4.3-inch color touch screen

• PIR Sensor : Sensing Distance 4m, Angle 70°

• Electrical Rating : 24 VAC, 1A Carry; 5A Surge 50/60 Hz

• Switches/Relays : 9 Latching type relay, 1A maximum loading

• Mounting Type: Wall Mounting

• Wiring: 18 AWG, Requires both R and C wires from the HVAC System

• Dimensions: 135(L) × 77.36 (W)× 23.5(H) mm
